3003 H14 High Strength Round Aluminum Tube 0.7 - 2.0mm For Heat Exchanger

Product Categories

Jiangsu Yunneng Precision Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

3003 H14 High Strength Round Aluminum Tube 0.7 - 2.0mm For Heat Exchanger

Name: 3003 H14 High Strength Round Aluminum Tube 07 20mm For Heat Exchanger
Brand: Yun Neng
Price: 1 USD

Cheap 3003 H14 High Strength Round Aluminum Tube 0.7 - 2.0mm For Heat Exchanger for sale

Brand Name : Yun Neng

Model Number : 3003

Certification : ISO9001 ISO14001 ISO45001

Place of Origin : Changzhou China

MOQ : 3 tons

Price : negotiation

Payment Terms : T/T

Supply Ability : 50,000 mt per year

Delivery Time : 30 working days after received your down payment

Packaging Details : Standard export packaging

Product Name : Aluminum Alloy Calandria

Outside Diameter : 7-30mm Or Customized

Wall Thickness : 0.7-2.0mm Or Customized

Salt spray corrosion test : > 1500 hours

Yield Strength /Mpa : ≥110

Elongation after break A50mm : ≥5%

Tensile Strength/Mpa : 130-165

State : H14

Shape : Coil

Contact Now

High Tensile Aluminium Tube Flat Plate Solar Collector Calandria 3003 H14

Product Description:

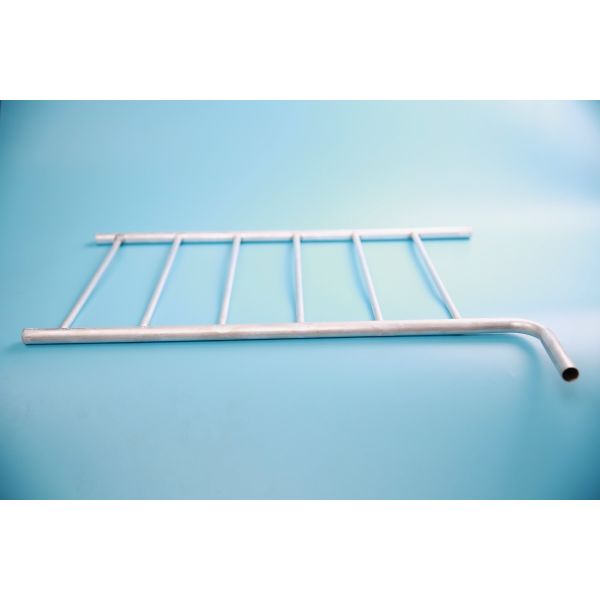

Tube-plate heat-absorbing plate

Flat plate solar collector tube-plate heat-absorbing plate is to connect the row of tubes with the flat plate in a certain way to form heat-absorbing strips, and then welded with the upper and lower collector tubes to form the heat-absorbing plate of the flat plate solar collector. This is the more common type of heat-absorbing plate structure used at home and abroad.

Applications:

Flat-panel solar energy collector

solar collector

heat exchanger

Solar tube

Vacuum solar tube

Wall-mounted flat plate collector

Large solar energy collector

Technical Parameters:

Aluminum Alloy Calandria

Product Name	Model Number (Material)	State	Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa
Product Name	Model Number (Material)	State	Outside Diameter/mm	Thickness/mm	Tensile Strength/Mpa	Yield Strength /Mpa	Elongation	Length/mm	Shape
Main Size Example	3003	H14	7-30	0.7-2.0	130-165	≥110	≥5%	Customized	Coil
		H12			115-150	≥75	＞12%
		O			95-130	＞60	≥30%
Calandria		H14, H12, O	10	0.8-1.2				Customized
			8
			12
Can customize the production of a variety of specifications of the collector tubes.

HOW TO ORDER

Firstly,here is a more detailed product description about Aluminum Alloy Tubes of Heat Exchanger.

Flat Panel Solar.pdf

Flat Panel Solar Enercy Aluminum Alloy Tube-PP.pd...

You can then download a form from this website and fill it out with basic details.

Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.

http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html

Alternatively, you can download the Technical Data Requirements Sheet directly.

Yuneng Product Requirements Table.docx

3003 H14 High Strength Round Aluminum Tube 0.7 - 2.0mm For Heat Exchanger

HOW TO ORDER

Firstly,here is a more detailed product description about Aluminum Alloy Tubes of Heat Exchanger.

Heat Exchanger Tube-1.pdf

Hear Exchanger Tube-2.pdf

You can then download a form from this website and fill it out with basic details.

Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.

http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html

Alternatively, you can download the Technical Data Requirements Sheet directly.

Yuneng Product Requirements Table.docx
